TrafMon

December 8, 2020

The trafMon software has been published as Open Source under Apache License, Version 2.0

It is available at www.trafmon.org

This AETHIS own developed TrafMon technology originates from the time-critical stringent communications quality performances of the worldwide Ground Segment network underlying the provision of advance Integrity services by GALILEO, the European Satellite-based Positioning System.

TrafMon monitors in details all IP packets or every (directional) traffic flow over one or several network communication links.

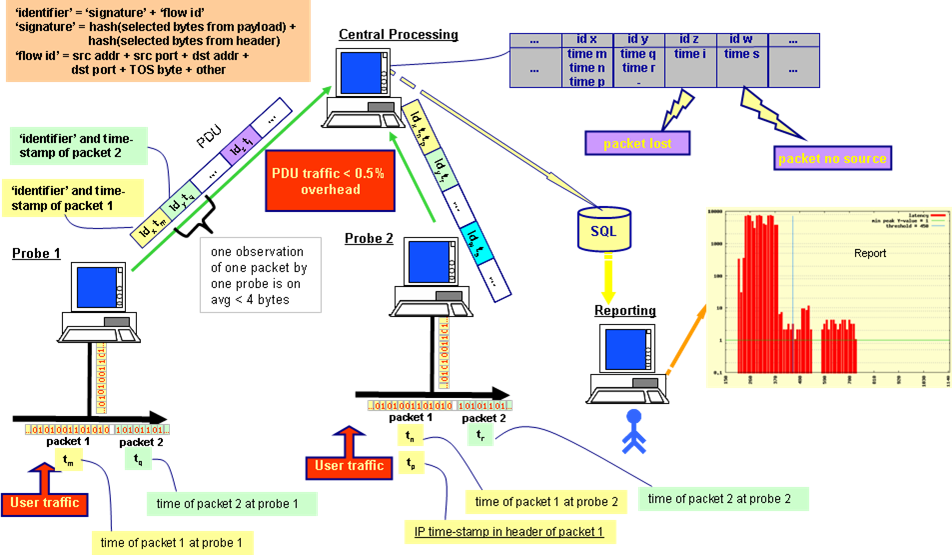

It is based on a number of software network probes that look a the network traffic, and send information to a central collecting point. At this central collector (Central Processing System) packet latency and other Key Performance Indicators KPIs) are calculated and reported.

TrafMon measures the per-flow one-way packet latency at the millisecond accuracy. And the tool detects every packet loss

The TrafMon tool has already been used by ThalesAleniaSpace France for the qualification of the links between Galileo Mission Control Center in Italy and, respectively, the Galileo Sensor Station and Galileo Uplink Station in Kourou, French Guyana.

Thanks to the precise measurements produced by the tool, its use has permitted to fine tune the packet priority management algorithm as well as to pinpoint an interface problem that led to seldom but excessive amount of packet losses

TrafMon Tool Main Characteristics

TrafMon features several important characteristics that uniquely addresses rather specific needs not otherwise responded to by other market products.

• The TrafMon tool responds to the dual need of temporarily troubleshooting under-optimal quality of critical network links as well as in continuously reporting on quality metrics and on traffic behavioural characteristics of communicating applications.
• TrafMon measures the actual user traffic instead of requiring injection of supplementary measurement traffic load.
• TrafMon collects is measurements at one or several points in the network path and from within the site access infrastructure.
• The TrafMon probe is a lightweight software component that can be deployed on non-necessarily dedicated Linux computers equipped with one or more probing network interfaces.

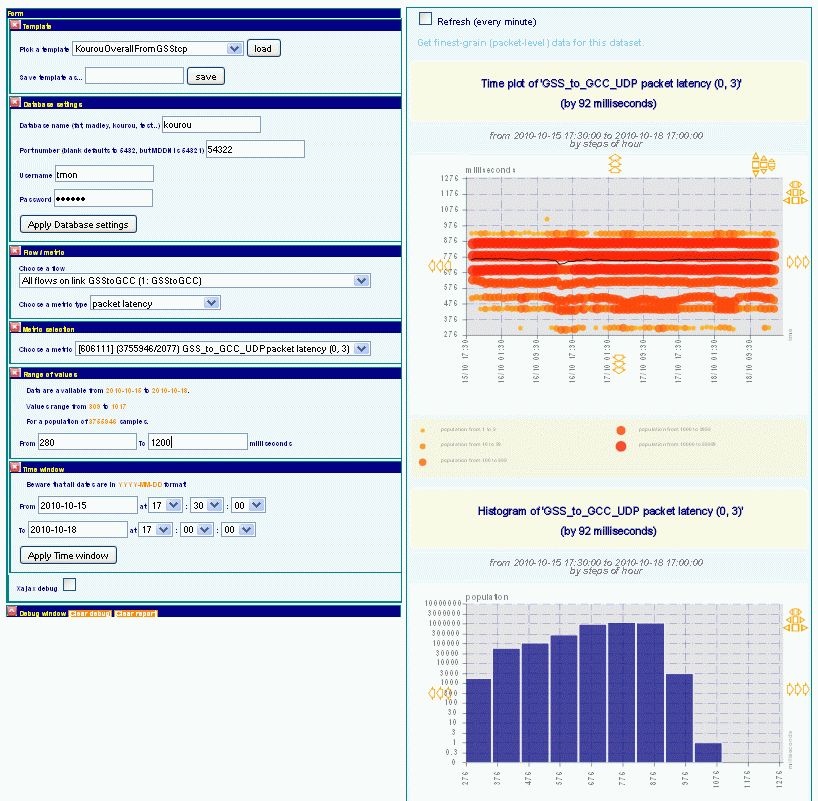

• The TrafMon probes measurements can be centralised online, in order to display the live performance figures within minutes.
• The protocol used for observations repatriation has been carefully designed to have no impact on the measured traffic:
• The TrafMon own traffic counts for less than 1% of the measured user traffic
• The TrafMon own traffic can be fully controlled with a minimum delay imposed between probe packets
• A maximum size can be imposed to the probe packets, so as to avoid delaying a time-critical packet during WAN serialisation
• The TrafMon protocol is reliable with automatic retransmission
• This TrafMon protocol is also used as heart beat allowing to detect a broken connectivity with a distant probe
